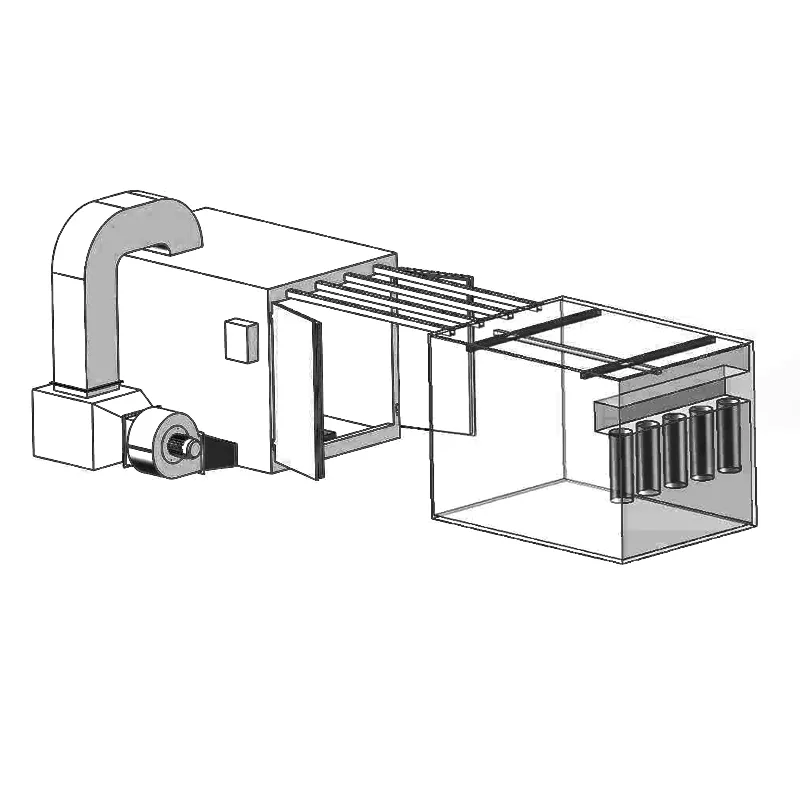

Walk-in Powder Coating System Plant

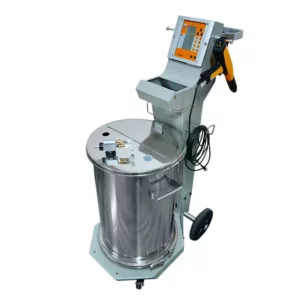

COLO-191S Powder Coating Spray Gun

COLO-191S manual powder coating gun is developed for easy and efficient job, suits for both beginners and specialists. Based on COLO advanced technology, especially complex parts can be perfectly coated with this model.

Configurations and Features
1. Digital controller allows precise setting and reading electric data
2. Three pre-set application programs stand for flat parts, profiles and re-coating
3. 100kv manual spray guns delivers high transfer efficiency with long time working
4. 60lbs fluidizing powder hopper is welled sealed to avoids damp and contaminated.
5. Flexible trolley with wheels can be moved everywhere
6. The anti-static powder hose is smooth for powder conveying.

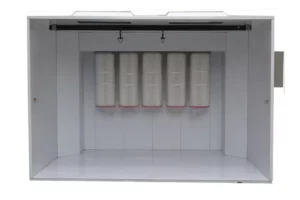

Walk-in Powder Spray Booth

Walk-in powder coating booth offers maximum operating flexibility, especially for heavy workparts which can be loaded on overhead tracks or directly rolled into the cabin. with 5 pcs of filter cartridges effectively separate powder particles and return clean air to the workshop.

Specfications
Model: COLO-S-3217
Operator dimensions: Width3000*Depth1700*Heght2000mm
Power supply: Electric
Volatge: 220V/380/415V, as required
Frequency: 50-60Hz
Fan: 1 sets. 4kw
Filter Qty: 5 pcs, quick-release type
Filter Material: 100% Polyester
Filters hang type: easy for change
Filter cleaning system: Pneumatic

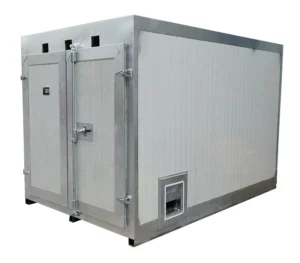

Gas Powder Coating Batch Oven

Gas powder coating oven equipped overhead track system which allows transportation of heavy elements using a small amount of force. This system maximize the use of the entire space that provides big output and high purity painted elements. Powder coating oven made by 100mm rockwool board always maintain the high temperature, and create consistent, high quality film thanks to the uniform hot air circulation,

Specifications
Model: COLO-3210
Working dimension: W2000 * H1900 * D3100 mm
Power supply: Gas/ LPG/Diesel
Voltage/Frequency: 220V/380V/415V, As required
Burner: Italy Riello
Warm-up time:15-30 min. (180°?C)
Temperature stability: < ± 3-5°C
Max. Temperature: 250°C
Fan Motor: 1 set.2.2kw
Ventilation Performance: 1131-2565m³/h

Note： *The sizes and specially configurations of walk-in powder coating plant can be customized as your workparts and productions, COLO is professional designer and manufacturer of powder coating equipment, system, and plants.
