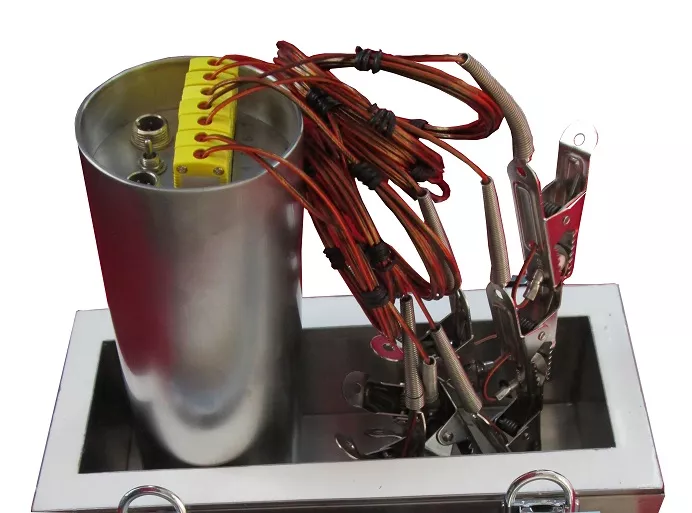

Temperature Profiling for Powder Coating Oven Colo-SMT-7

Reliable, easy to use and accurate in-process temperature profiling for the powder coating oven.

Categoría:

Descripción

Curing oven Temperature Profiling for Powder Coating

Model COLO-SMT-7
Channel Number 7 Channel
Temperature 0~500C Thermocouple K Memory 128 K
Resolution 0.5C Accuracy 0.5% Size Φ76 * 200
Use Time 600min under 100C ,or 120min under 200C or 60min under 300C
Recorder Time 4h under sample rate 1s
Sample Rate 1s, 2s, 3s, 5s, 8s, 10s, 12s, 20s,40s, 60s
Thermal Barrier 280(length) x 120(width) x 100(height)
Setting Software (TrendReader V1.22 ) 1) To select or unselect each channel with Yes or NO
2) To verify the accuracy separately for each channel
3) Easy to choose sample rate
4) Switch ON/OFF
Analysis Software (TrendReporter V1.0) 1) To display temperature data
2) To calculate heating rate between two temperature level
3) To calculate total time above two different temperature
4) To Calculate Peak Temperature
5) To Compare different temperature profile
6) To Print Report



colo-SMT-7-32-300-K Software Trendreporter
