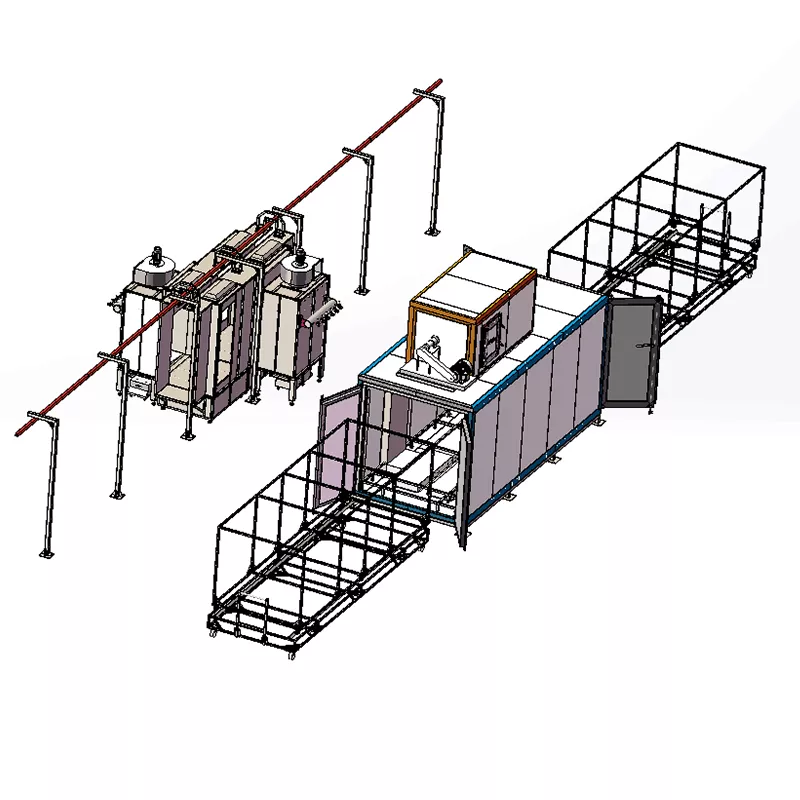

Manual Batch Powder Coating Plant
This powder coating plant is ideal for continuous batch production based on manual operation. includes pass thru powder coating booth, batch curing ovens and manual powder painting machines.
The COLO manual batch powder coating plant built in Malaysia.

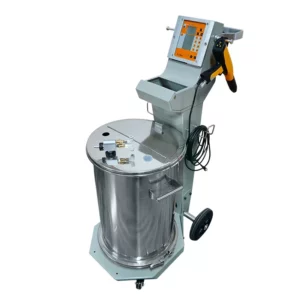

COLO-191S Powder Coating Spray Gun
COLO-191S manual powder coating gun is developed for easy and efficient job, suits for both beginners and specialists. Based on COLO advanced technology, especially complex parts can be perfectly coated with this model.
Configurations and Features
1. Digital controller allows precise setting and reading electric data
2. Three pre-set application programs stand for flat parts, profiles and re-coating
3. 100kv manual spray guns delivers high transfer efficiency with long time working
4. 60lbs fluidizing powder hopper is welled sealed to avoids damp and contaminated.
5. Flexible trolley with wheels can be moved everywhere
6. The anti-static powder hose is smooth for powder conveying.

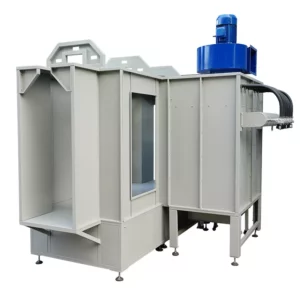

Manual Pass Thru Powder Spray Booth
This manaul powder coating booth has 2 working station allows parts recieving coating from both sides, parts enter the booth from one entrance and exit from the other through conveyors, continuous coating increases efficiency and ensures application quality.
Specfications
Model: Pass Thru Type
Operator dimensions: customized
Power supply: Electric
Volatge: as required
Frequency: 50-60Hz
Fan: 2sets
Filter Stage: 2 units
Filter Material: Polyester
Filters hang type: easy for change
Filter cleaning system: Pneumatic

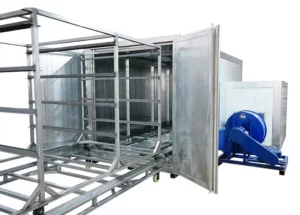

Gas Powder Coating Batch Oven
Gas powder coating oven equipped with a manual transport system which allows transportation of heavy elements using a small amount of force. This system maximize the use of the entire space that provides big output and high purity painted elements.
Specifications
Working dimension: customized
Power supply: Gas/ LPG/Diesel
Voltage/Frequency: 220V/380V/415V, As required
Burner: Italy Riello
Warm-up time:15-30 min. (180°?C)
Temperature stability: < ± 3-5°C
Max. Temperature: 250°C
Fan Motor: 1 set
