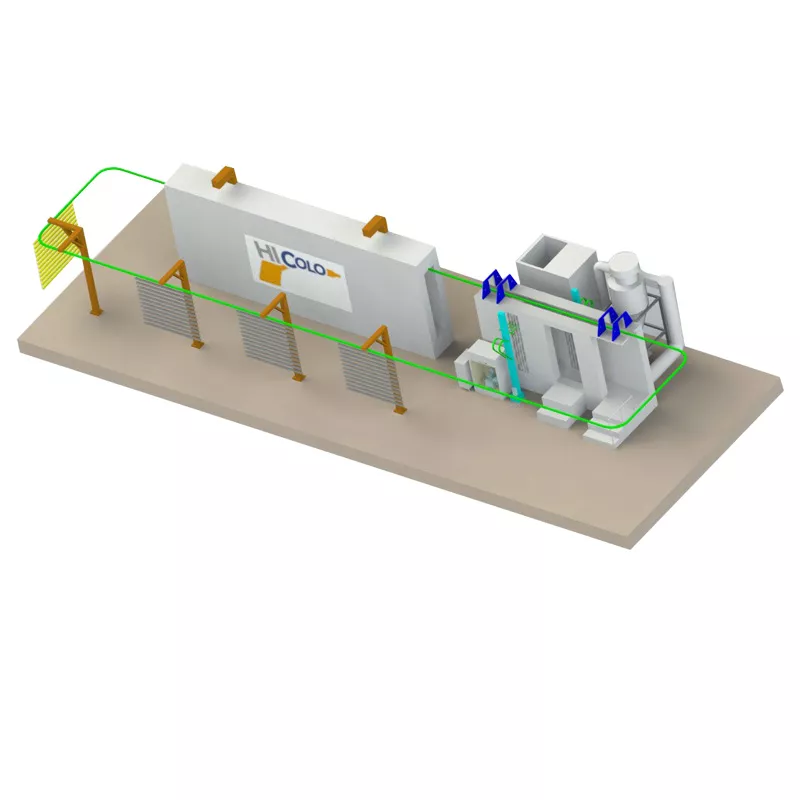

Full Automatic Powder Coating Line

Automatic Powder Coating Line

Compact automatic powder coating line includes powder spray booth with recovery system, automatic coating guns and reciprocator, powder supply equipment, curing tunnel and conveyor system.

We provide professional service of powder coating line designing, manufacturing, assembling, commissioning and training for oversea countries.

Cyclone Type Automatic Powder Booth Features

1. Mono cyclone achieves high recycling rate and extremely quick cleaning during color change taking around 15 minutes.
2. The secondary recovey stage is combined with a group of high precision filters effectively capture ultra fine powders, thus only particle-free air discharged outside.
3. There’s air clean system continuously transports over sprayed powder from the booth floor, quickly recycling it back to the powder feed container.

.

Automatic Powder Coating Gun System

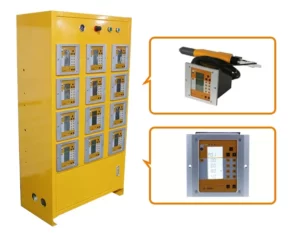

1. A central control cabinet combines all gun controller for integrated operation, enbles to set parameters only at one host unit to control whole system.
2. COLO-191S powder coating unit applies latest DVC technology allows a flexible and accurate setting of all parameters, giving perfect finish with consistent quality.
3. The 100kv spray gun powerfully charge powders delivers high transfer efficiency, increase powder utilization
4. Tested reliable system Based on COLO 10 years technology.

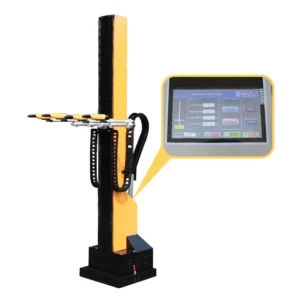

Powder Coating Reicprocator

1. Linear rail guide mechanism, scroll up and down with a belt, a frequency adjustable motor controlled by PLC, giving more smooth, stable and precise motion
2. Heavy-loaded reciprocator with reliability to carry up to 24 pcs spray guns
3. Moving speed and stroke can be easily set at touching screen with 20 storable programs.
4. The slim column design allows for space-saving arrangement of the guns
5. Increasy uniformity and quality consistency, reduce powder consumption.

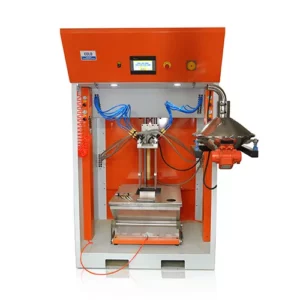

Powder Management Center

1. Continuously, uniformly, quantificationally feed the powder to the spray gun, improve application quality
2. Automatic cleaning of spray guns, powder hoses, injectors during color change, reduce manpower and increase efficiency.
3. A sieving section makes sure only quality powders are recyled, the mixing of fresh and recovery powders increase powder utilization
4.100 liter capacity of powder hopper, a sener will detect the powder position and alarm a signal when a lack of powder.
5. A user-friendly touching screen panel makes it easy to handle the process.

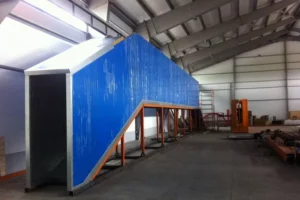

Powder Coating Curing Tunnel

1.Curing Tunnel is made of 100mm rock wool board with galvanized steel wall, features durable and heat-resistent.
2.Quickly and uniformly raise to required temperature up to 250’C, increase production efficiency
3.With fan that circles hot air throght the entire chamber ensures even temperature.
4.Heating source can be electric, gas or diesel, the latter is more recommended for economical expense
